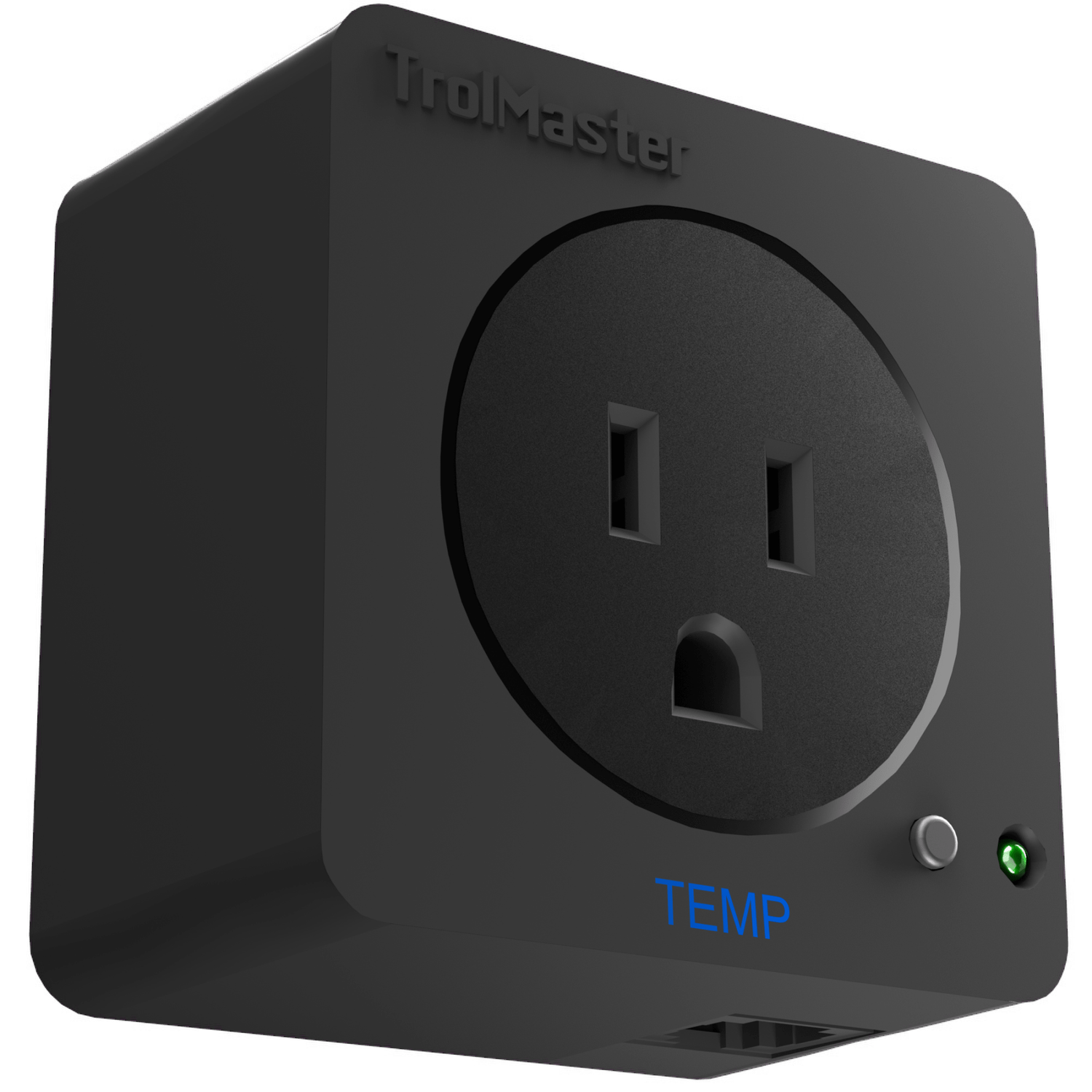

TrolMaster DST-1 Temp Device Station

The TrolMaster DST-1 Temperature control modules allow the user to easily connect and control standard heating or cooling devices to the Hydro-x. This module allows control of any heating or cooling device under the world voltage standard (100-240 VAC, 50/60 Hz), up to 10-amps. LED status: * Blinking green FAST: If the LED is blinking quickly, that means the module has not been addressed to the controller OR that module does not have a good connection to the controller. *Pressing the small button on the module will address/ link the module when first installed. * Blinking green SLOW: If you see a slowly blinking green LED, that means the module is addressed and connected to the controller, and the module is currently turned OFF. * SOLID green: If you see the LED is on solid (no blinking) that means the modules are addressed, connected and currently turned ON. * Blinking red: If you see the LED change to blinking red, that means the module has been overloaded. To reset the overload unplug the module from the power. * By pressing and holding the button on the DST-1, users can manually override the module and turn it ON /% OFF. All DS type modules provide global plug type, please check the following chart to check if it is compatible with your country.
